Sturdy and efficient construction built to last

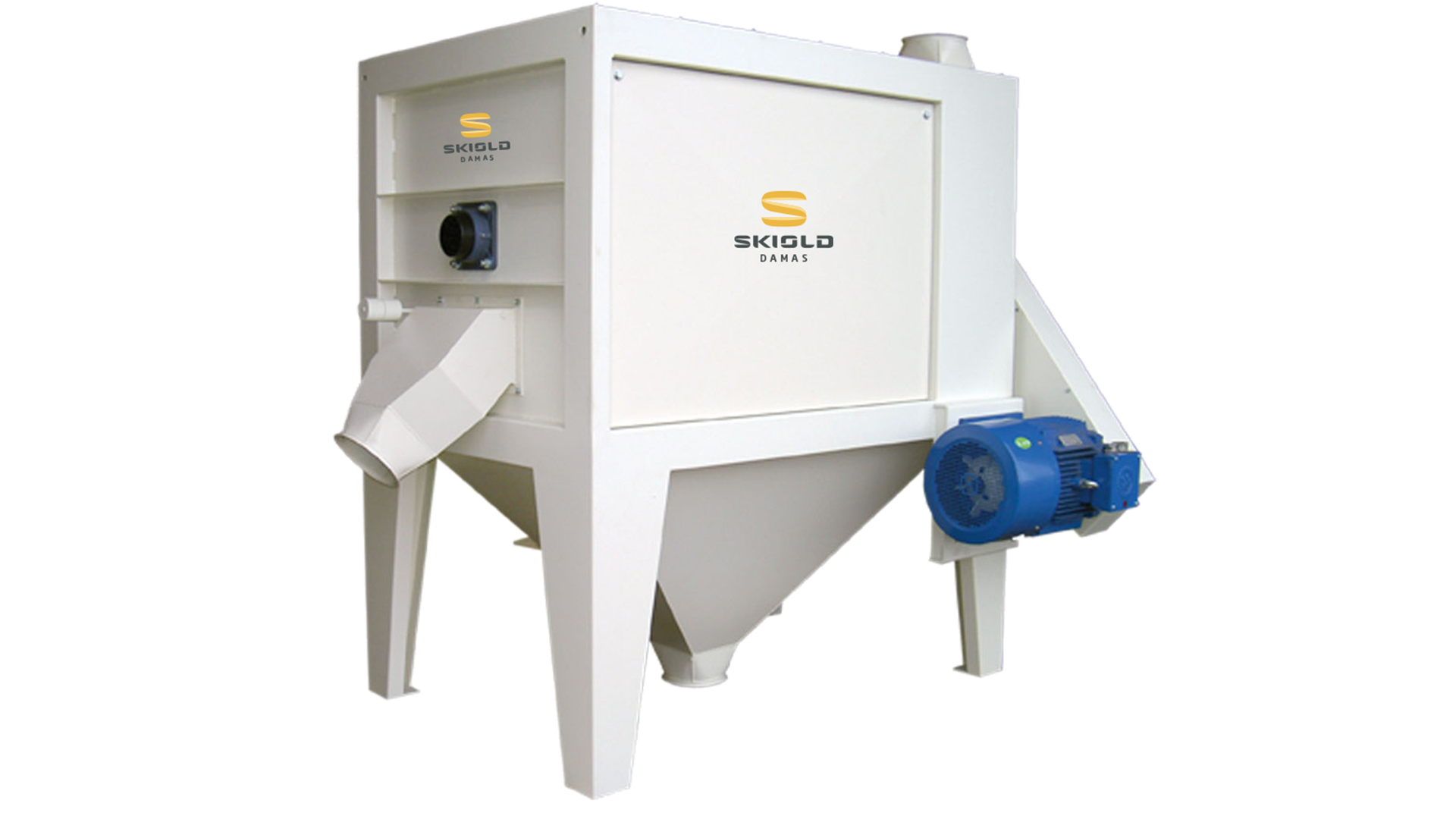

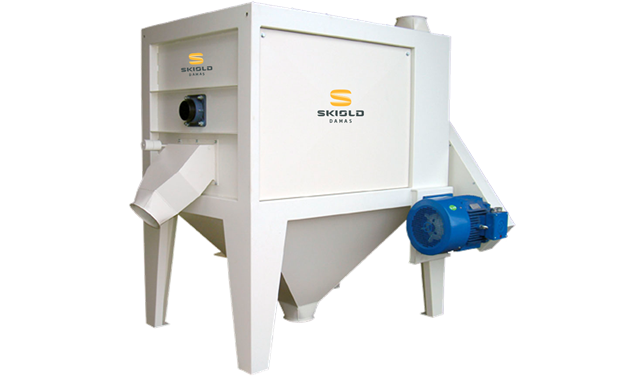

The Hambo by Damas is a durable brushing machine for grass or clover seeds. It easy to operate, service and maintain and is built to last.

Function of Hambo

The material to be treated (1) is led into the scarifying basket (4) by means of the feeding auger (2). Grass or clover seeds are separated from the seed coats (the capsules or the flowers), double seeds are divided and dehulling is done by means of the rotor (3). The material is then led to an outlet hole in the opposite end or through the clipper-de-awner wire mesh to the outlet hopper (6). The outlet hole (5) is provided with a weighted flap.

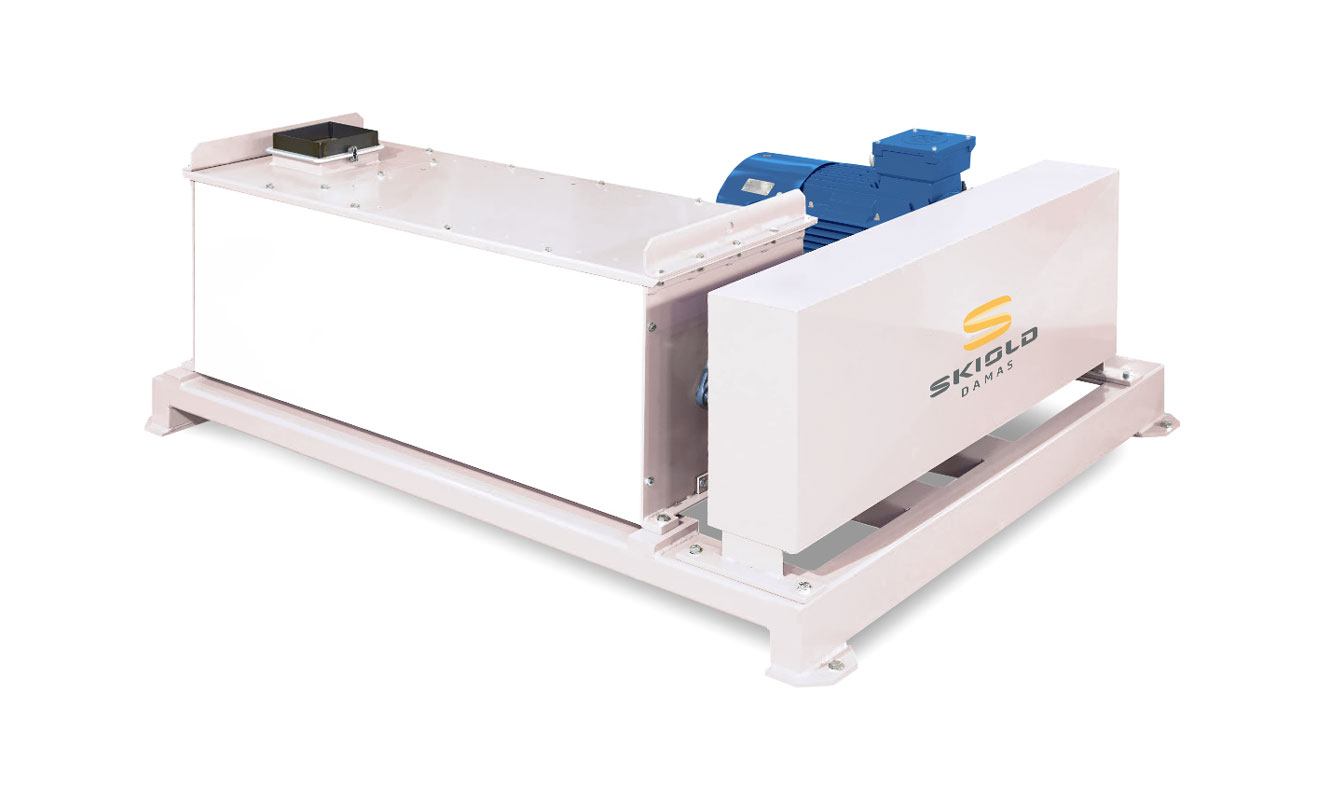

The Kiban is a steel construction fitted with a rotating shaft with steel pegs. This shaft is suspended from sturdy ball bearings. The top cover of the Kiban is equipped with clipper-de-awner cloth on the underside. Furthermore, the trough is reinforced with exchangeable steel wear plates.

The long flap at the bottom runs the entire length of the machine and can be removed completely to make cleaning easier.

How it works

The material to be de-awned is led down to the inlet (1) and passes through the clipper-de-awner in the longitudinal direction. Here it is treated by the clipper/de-awner pegs (2) and the clipper/de-awner cloth under the cover (not shown). The material spirals towards the outlet (4), the size of which (and thus the clipper efficiency) is regulated by the flap (3) that runs along the whole bottom of the machine.

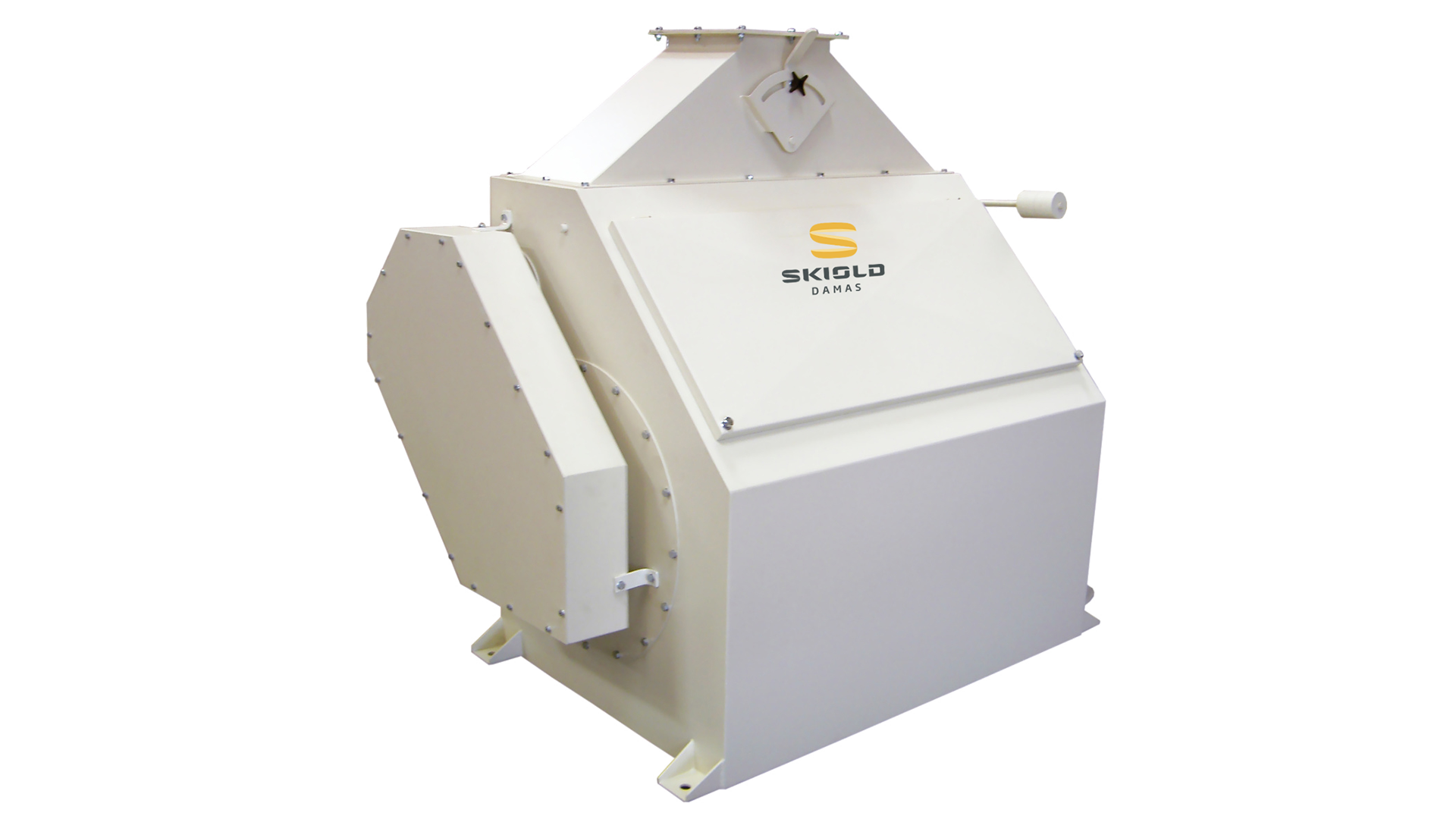

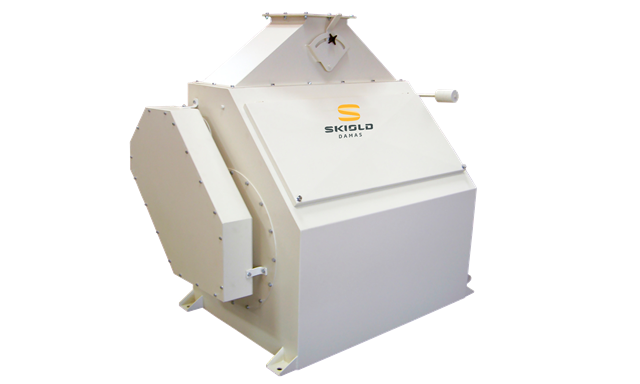

Solid and reliable machine for the removal of straw or large particles from your grain

The Halmu is used for raw material such as grain or seed containing large quantities of straw or large particles that need to be removed from the material before the final treatment processes in your production line.

How it works

The raw material is conveyed in over the straw drum via a distributor and a feed roller with a weighted capacity slide. The clean material flows through the drum via catches to the clean material channel. Here it is possible to connect aspiration for dust removal. Pieces of straw and other large foreign bodies are segregated on the top side of the drum and conveyed to the outlet for waste material.
