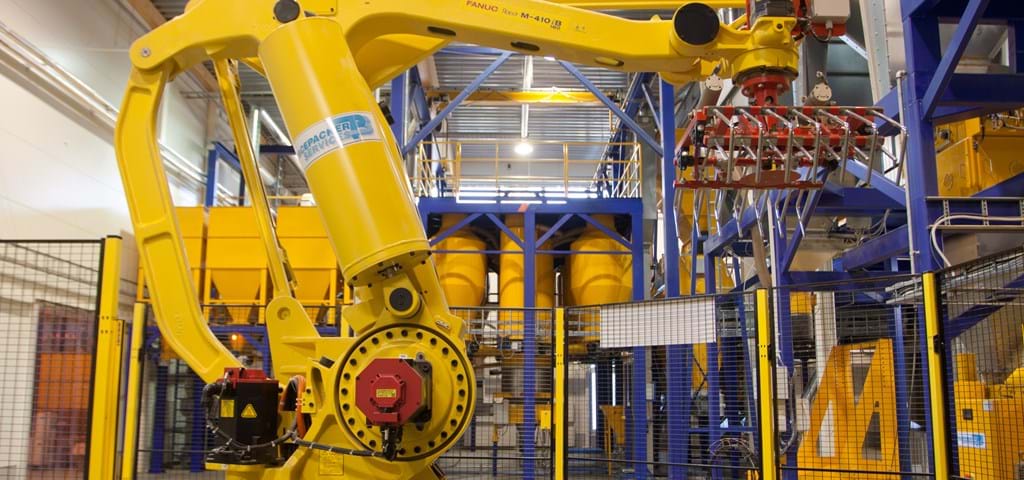

SKIOLD palletizing system in feed mill

Industrial feed production, Estonia

Producer of minerals for animal feed 7 tons/hour

Our largest project in the industrial segment to date was realised for a customer in Estonia. The customer produces mineral supplements for animal feed and delivers the products in 25 kg paper sacks, big bags of over 1,000 kg and bulk batches of up to 20 tonnes that are loaded directly onto trucks. Due to the wide range of products, the customer placed very high demands on the flexibility of the system.

Normally, we present a final solution proposal and budget estimate after about two months and 2-3 meetings, but this initial phase was extended due to the complexity of the task.

In the end, our proposal matched all the customer's requirements, the agreement was finalised and the detailed design started.

The flexibility requirements were met with a container docking station with space for four of a total of 16 delivered 2.0 m³ containers. In addition, four 4.0 m³ stationary silos, 15 smaller silos and a manual weighing hopper.

The delivery also included eight raw material silos, a macro weighing system, a disc mill, a pellet press, a fully automatic bagging system and a complete control system.

The plant in figures:

Building area: LxWxH min. = 18x18x10 m

Installed effect: Approx. 475 kW

Batch size: 1 ton

Capacity, pressed pellets: 3-5 tons/hour

Capacity, meal products: 7 tons/hour
