TransPork Dry Feeding System

The diameter of the feeding system is available in sizes from 38 to 63 mm, covering capacities from 300 - 2100 kg per hour. The hoppers are available in several models depending on the needs and type of system.

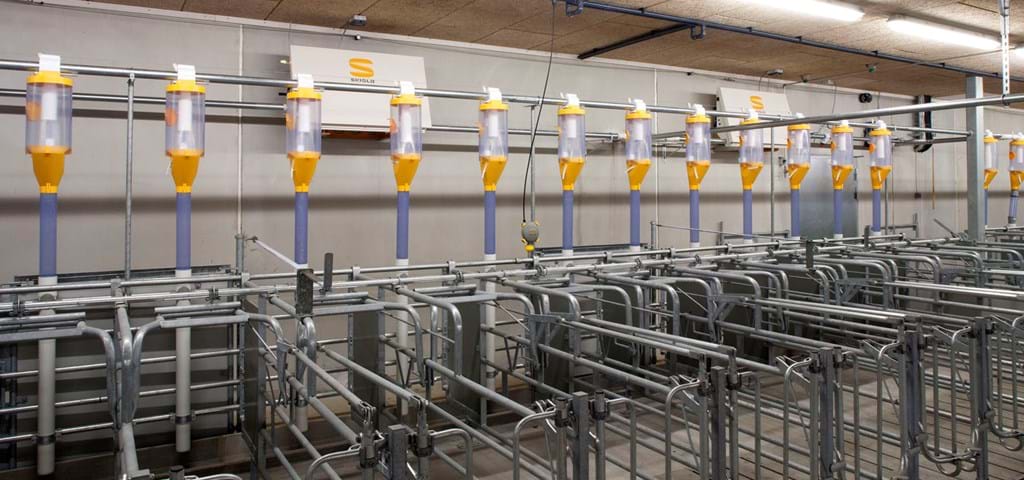

The strong construction gives the system an unrivalled capacity of up to twice that of other dry feeding systems, making TransPork® ideal as infeed conveying and similar applications. The TransPork® conveyor system is often used to fill SKIOLD's volume dosing units or as a filling system for Maximat® feeders. The drive unit can be placed on both the wall and the floor. A switch is fitted that automatically stops the system in the event of incorrect wire tension, and a fuse prevents the wire from breaking in the event of foreign objects in the feed.

SKIOLD's intake hopper is simple in its design with a stainless steel housing, which makes it suitable for both outdoor and indoor installation. The hopper can be placed freestanding on the floor or suspended under a silo. The inlet is adapted to common standard hoppers, but can also be supplied with a number of special crossovers. The feed quantity is easily adjusted without the use of tools and the dosage can be continuously checked in the inspection glass mounted behind the hopper. The enclosure in the reclaimer is self-emptying, so feed residues do not accumulate.

The corners of the TransPork® are moulded in a durable plastic material and can be mounted horizontally, inclined or vertically. The strong inner wheel is fitted with two dust-proof ball bearings and the two corner halves are clamped together with stainless steel bolts, ensuring a tight connection without feed spillage or water ingress and thus a long service life without breakdowns. TransPork® corner is also available in a galvanised version.

The TransPork wire consists of an oil-treated steel wire that is coated with a rubber coating to prevent any metal pieces from getting into the feed. The TransPork Wire has proven its superior strength for more than 25 years, and today the wire comes with a five-year warranty. The patented, movable joint ensures that the wire is not overloaded during assembly when running in corners and drive wheels. The system is designed for transporting feed, but is also approved by the Danish Veterinary and Food Administration for transport of foodstuffs.
